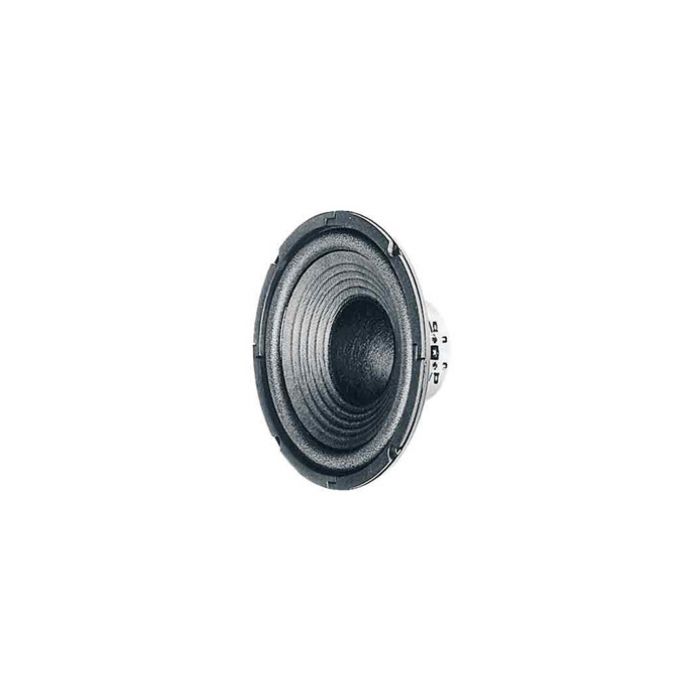

SPEAKER LAAG 8 OHM 50/80W 45-4500HZ 88DB 200MM (8'')

Nominal power handling 50 Watt
Peak power handling 80 Watt
Nominal impedance 8 Ohm
Frequency response (-10 dB) fu - 8000 Hz
(fu: Lower cut-off frequency depending on cabinet) .
Mean sound pressure level 88 dB (1W/1m)
Maximum cone displacement 20 mm
Resonance frequency fs 45 Hz
Magnetic induction 1 Tesla
Magnetic flux 400 µ Weber
Height of front pole-plate 5 mm
Voice coil diameter 2,5 cm
Height of winding 0,9 cm
Cutout diameter 18,5 cm
Net weight 1,045 kg
D.C. resistance Rdc 6,9 Ohm
Mechanical Q factor Qms 2,92
Electrical Q factor Qes 0,85
Total Q factor Qts 0,66
Equivalent volume Vas 53 l
Effective piston area Sd 207 cm2
Dynamically moved mass Mms 14 g
Force factor Bxl 5,6 T · m
Inductance of the voice coil L 0,89 mH
