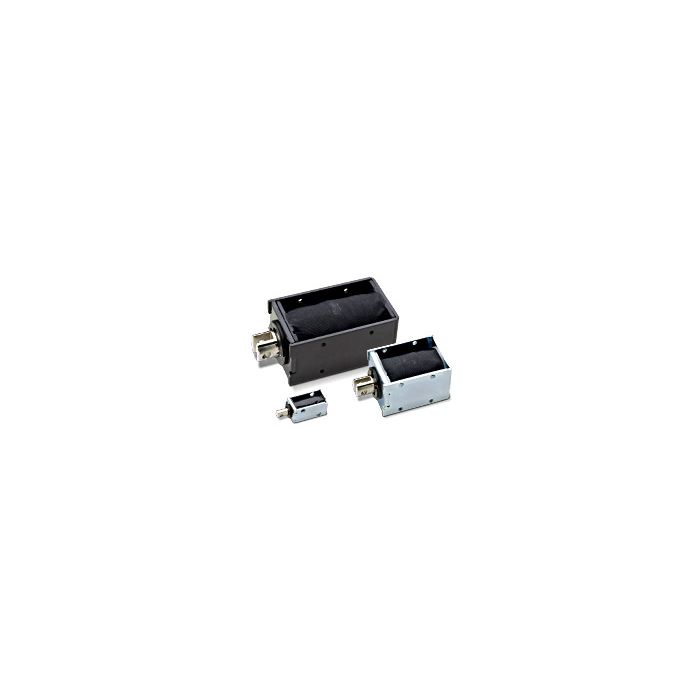

SOLENOID TREKMAGNEET 12VDC/0.67A 4,2KG

Description
Chaeap based on frame mode construction.
Including damping ring and dumper
inside the case. Opend framded solenoid
with closed brace.
Small but with overload passably stroke at
the 30 - 40 mm.
Weight: 1.090 g
Elevated force at end of the stroke.

Coil Data
Relative ED (Percent) 100 50 25 10
Max. Performance
(Watt) 16 32 64 160
Max. ED (Seconds) ‡ 250 120 40

Solenoid Layout
Version:
Pull Magnet
Current:
12 VDC (standard)
