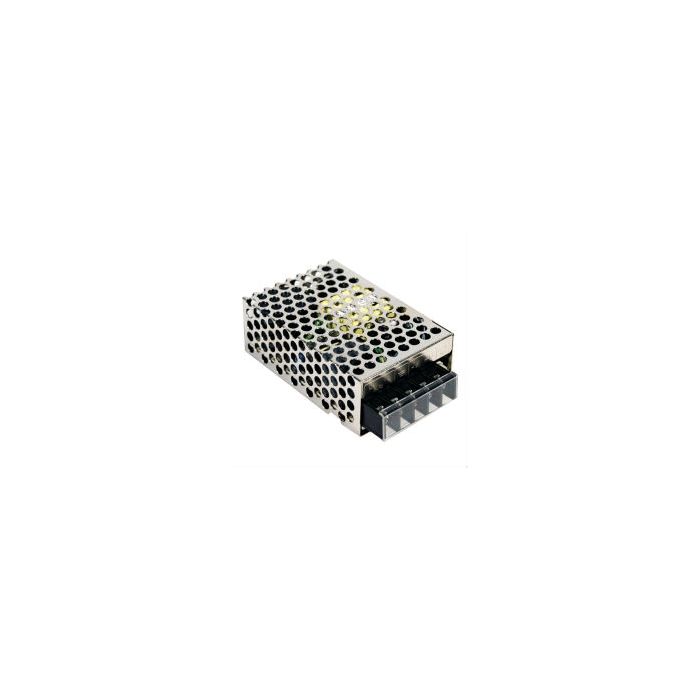

GESCHAKELDE VOEDING SINGLE OUTPUT 27W 48V/0.57A
€ 16,50
€ 13,64
Artikelnummer
RS2548
- ArtikelnummerRS2548
- MerkMEANWELL
- Aantal 3+ € 15,67 € 12,95
Note
| These power supplies are considered as a component that has to be installed in a final equipment. |
 |
| Features |
| • Enclosed case, screw terminals • Universal input • Overload protection, pulsing hiccup shutdown, auto recovery • Protections: short circuit/over load/over voltage • Long life 105°C electrolytic capacitors |
|
| Technical Specifications |
|
|
| Input Voltage: | 88...264V AC (47...63Hz) |
| 125...373V DC | |
| Input Inrush Current, Max.: | 30A |
| Leakage Current, Max.: | 2mA |
| Output Voltage Adjustment: | +10/-5% |
| Over Load Protection: | 110...180% |
| Withstand Voltage | |
| I/P-O/P: | 3000V AC |
| I/P-FG: | 2000V AC |
| O/P-FG: | 500V AC |
| Operating Temperature: | -20...+70°C |
| Weight: | 200g |
| I/P = Input, O/P = Output, FG = Frame Ground |
|
|
|
| Part Nr. | UA | IA | PA | DUA | URN | h |
| [V] | [A] | [W] | [%] | [mVp-p] | [%] | |
| RS-25-3.3 | 3,3 | 0...6 | 19,8 | 3 | 80 | 73,5 |
| RS-25-5 | 5 | 0...5 | 25 | 2 | 80 | 78,5 |
| RS-25-12 | 12 | 0...2,1 | 25,2 | 1 | 120 | 81,5 |
| RS-25-15 | 15 | 0...1,7 | 25,5 | 1 | 120 | 83,5 |
| RS-25-24 | 24 | 0...1,1 | 26,4 | 1 | 120 | 86 |
| RS-25-48 | 48 | 0...0,57 | 27,36 | 1 | 200 | 85 |
| UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency | ||||||
|
||||||
| Labelling |
   |
|
