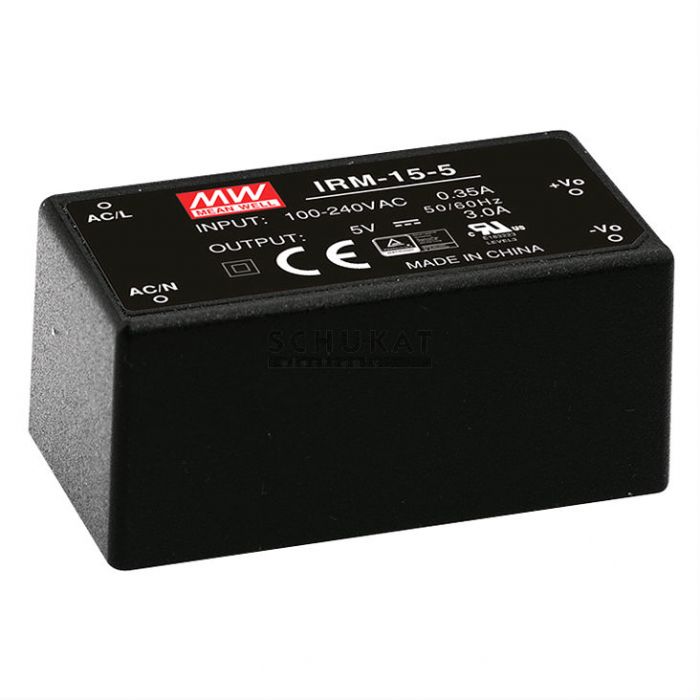

GESCHAKELDE VOEDING 5.0V 3.0A 15W PRINT MONTAGE
€ 14,96
€ 12,36
Artikelnummer
IRM1505
- ArtikelnummerIRM1505
- MerkMEANWELL
- Aantal 3+ € 14,21 € 11,74
Features
| • Enclosed type for PCB mounting • Universal input • Protections: short circuit and over load • Cooling by free air convection • Low no load power consumption • Insulation class II |
 |
| Technical Specifications |
|
|
| Input Voltage: | 85...264V AC (47...440Hz) |
| 120...370V DC | |
| Input Inrush Current, Max.: | 40A |
| No Load Power Consumption, Max.: | 0,1W |
| Withstand Voltage: | 3000V AC |
| Operating Temperature: | -30...+70°C |
| Weight: | 59g |
|
|
| Part Nr. | UA | IA | PA | DUA | URN | h |
| [V] | [A] | [W] | [%] | [mVp-p] | [%] | |
| IRM-15-3.3 | 3,3 | 0...3,5 | 11,55 | 2,5 | 200 | 74 |
| IRM-15-5 | 5 | 0...3 | 15 | 2,5 | 200 | 78 |
| IRM-15-12 | 12 | 0...1,25 | 15 | 2,5 | 200 | 82 |
| IRM-15-15 | 15 | 0...1 | 15 | 2,5 | 200 | 82 |
| IRM-15-24 | 24 | 0...0,63 | 15,12 | 2,5 | 200 | 83 |
| UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency | ||||||
|
||||||
| Norms |
| TÜV EN60950-1, UL60950-1 |
|
| Approvals |
    |
|
