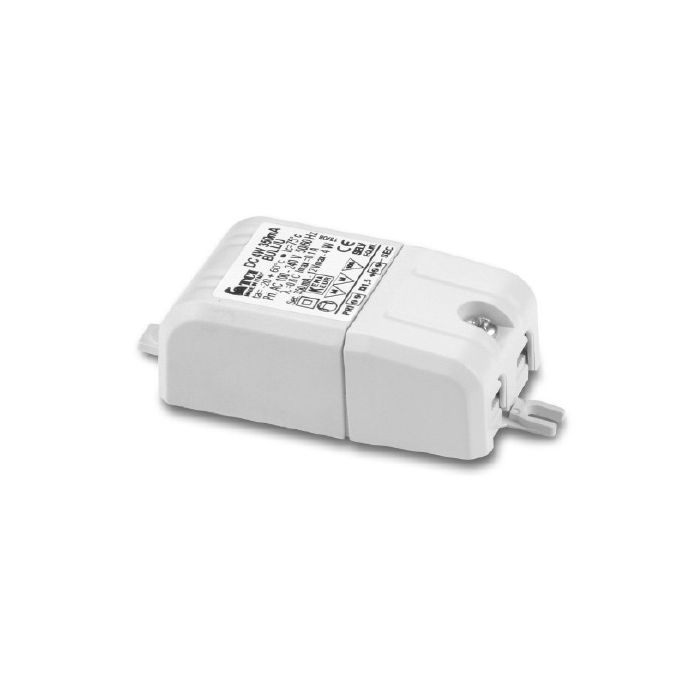

BULL/U LED DRIVER 12VDC 350MA 4W 60X68X21MM

Direct current electronic drivers for power LED and LED modules

INPUT
• Nominal: 100/240 Vac -10/+10 % 50/60Hz.
220/240Vdc -10/+10 %
• Terminal block for up to 1 x 2.5 mm2.
• Max Input Current: 0.085 A @ 230Vac
• Max Input Current: 0.14 A @ 100Vac.
• Power factor λ: 0.6.
• Harmonic content of mains current: accord-ing to EN 61000-3-2.
• Terminal cover and cable retainer for Dmin=3mm and Dmax=8mm.

OUTPUT
• EQUIV. SELV insulation on output.
• Terminal block for up to 1 x 2.5 mm2.
• Max power: 8W.
• Max. output voltage: 24VDC ± 5%.
• Output nominal current: 350mA +5% -7% con-stant from 2V to 22V.
• Terminal cover and cable retainer for Dmin=3mm and Dmax=8mm.

PROTECTIONS
• Against input overvoltages from mains (1kV according to EN61547).
• Against short circuit.
• Thermal and overload protection.

EMI
• According to EN55015.

AMBIENT
• Built in power supplier IP20.
• Ambient temp.: -20 ÷ 50°C.
• tc = 75 °C.
• tc life 50000H = 70°C @ 6W max
• tc life 40000H = 70°C @ 8W max

SAFETY
• Hi-pot test: 3.75 kV, 100% for 2 sec.
STANDARDS and APPROVALS
• EN 61347-1-1 ; EN 61347-2-2 ;
EN 61547; DIN VDE 0710 teil 14 ;
EN60598-2-22.
• KEMA KEUR

DIMENSIONS
• 60 x 35 mm. H = 21 mm.
