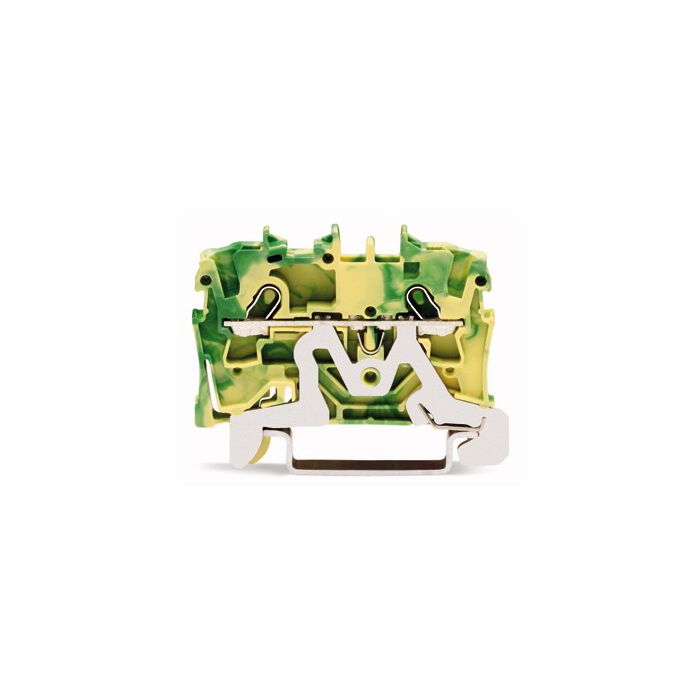

AANSLUITKLEM GROEN/GEEL 4.2MM VOOR 35MM DINRAIL MAX. 2.5MM2KLEM AANSLUITING
€ 3,50
€ 2,89
Artikelnummer
AKDR30GG
- ArtikelnummerAKDR30GG
- MerkBrand
- Aantal 5+ € 3,15 € 2,60
| Name | Value | Unit |
| Total number of connection points | 2 | |
| Total number of potentials | 1 | |
| Color | green-yellow | |
| Ratings according to 1 | IEC/EN 60947-7-2 | |
| Connection technology | Push-in CAGE CLAMP® | |
| Number of connection points | 2 | |
| Actuation type | Betätigungswerkzeug | |
| Connectable conductor materials | Kupfer | |
| Nominal cross section | 1.5 mm² | |
| Solid sizes | 0.25 … 2.5 mm² / 22 … 14 AWG | |
| solid, directly pluggable | 0.5 … 2.5 mm² / 20 … 14 AWG | |
| Fine-stranded wires | 0.25 … 2.5 mm² / 22 … 14 AWG | |
| min. fine-stranded with insulated ferrule, push-in terminati | 0.75 mm² / 18 AWG | |
| Strip length | 9 … 11 mm / 0.35 … 0.43 in | |
| Type of wiring | Front-entry wiring | |
| Design | horizontal | |
| Marking level | Center/Side marking | |
| Insulating material | Polyamide 66 (PA 66) | |
| Fire load [MJ] | 0.074 | MJ |
| Weight [g] | 6.669 | g |
| Width | 4.2 mm / 0.165 in | |
| Height from upper-edge of DIN-rail | 32.9 mm / 1.295 in | |
| Length | 50.8 mm / 2 in | |
| Type of mounting | DIN-35 rail |
